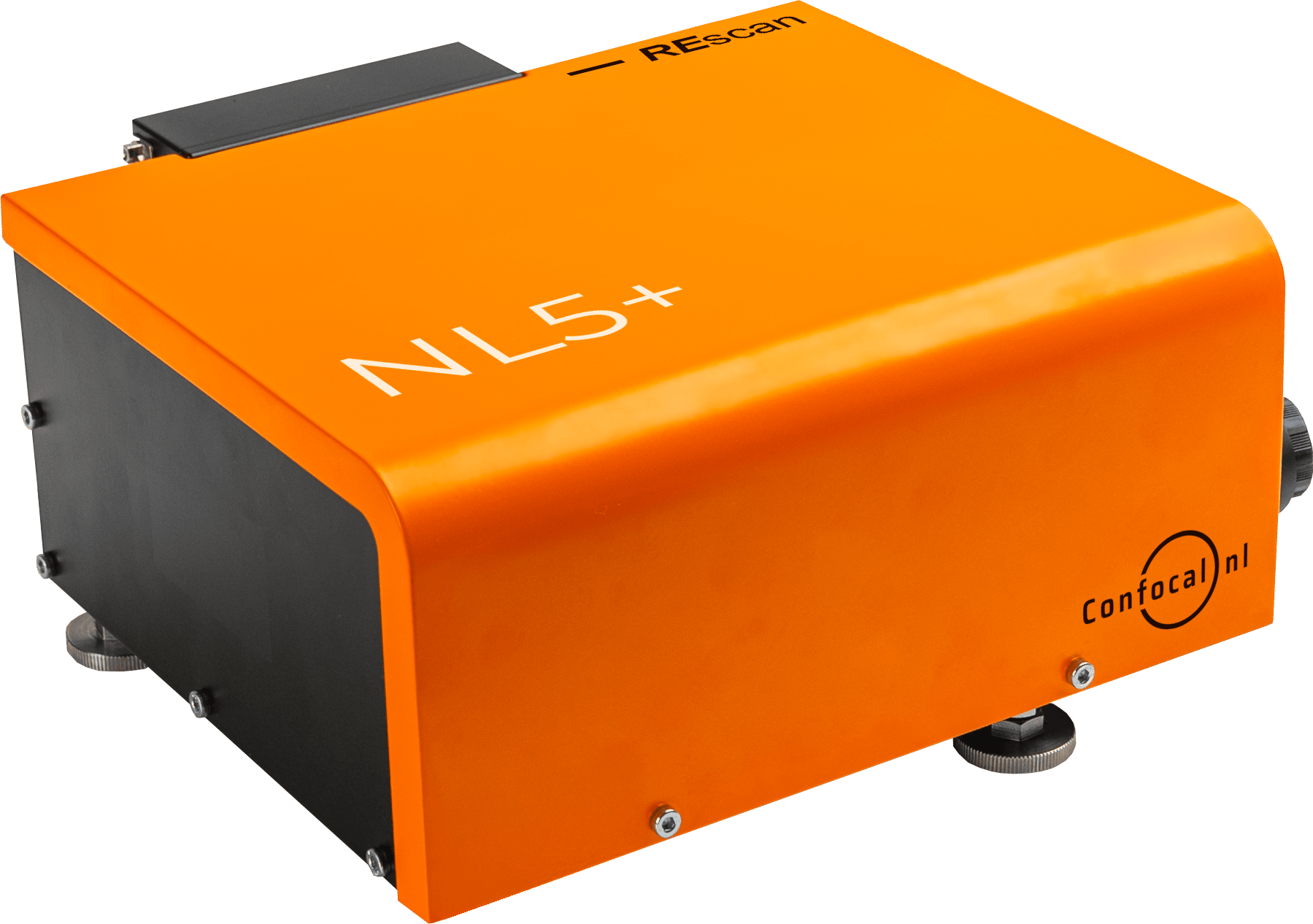

The NL5 is the second generation of fast line-scanning confocal technologies. It provides high-contrast images from thicker specimens such as organoids, tissue samples, plant and animal model organisms. The gentle conditions for your live samples allow the NL5+ to excel in long time-lapse experiments and imaging low-signal samples.
The combination of camera-based detection and a set of filters allows you to acquire your images in up to six different colors. This gives you an improved temporal resolution, high sensitivity and unprecedented signal-to-noise ratio. You get even faster imaging with cleaner results, thanks to additional motorized single-band emission filters.
Contrary to spinning-disk systems, another advantage of the NL5 series and its slit pinhole is that it does not lead to pinhole crosstalk when imaging deep within the sample. The NL5 series reaches 240 nm lateral resolution which can be easily converted into 170 nm with on the fly deconvolution.
NL5 is an excellent add-on to any research microscope. It allows for converting a wide-field system into a fast scanning confocal with high resolution and sensitivity.
The NL5+ is a confocal system which enables even faster imaging with cleaner results. This is a direct result of one of the new functionalities: its additional motorized filter wheel.
Our system uses a line scanner, instead of a point scanner confocal microscope. This provides high temporal resolution, while at the same time reducing phototoxicity. Since phototoxicity is one of the biggest challenges for researchers, this makes the NL5+ the perfect tool for live cell imaging.
You can also add the NL5+ to any widefield microscope. This will turn it into an advanced fast-scanning confocal imaging system.
